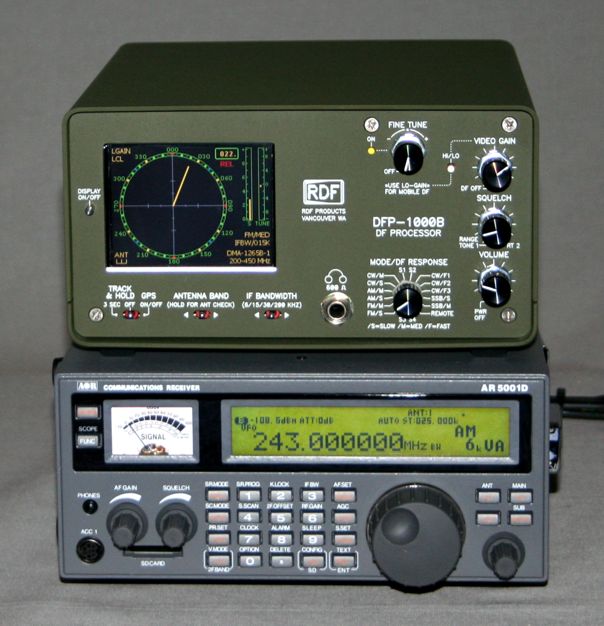

RDF Products DFR-5001B Wideband Radio Direction Finding Receiver
 | Compact, Self-Contained, Easy-To-Operate Unit |
| Ultra-Wide Frequency Coverage (40 kHz-3,150 MHz; subject to DF antenna frequency coverage) |
| Real-Time TFT Polar Bearing Display For Optimum Performance In Dynamic DF Environments |
| Specifically Designed For Radio Direction Finding In Motion |
| 3-1/2 Digit Numeric Bearing Display w/0.5 Degree Resolution |
| AM/FM/CW/SSB Demodulation Capability With Built-In Loudspeaker |
| Simultaneous Radio Direction Finding And Listen-Thru Capability |
| Selectable Bearing Integration Times |
| Ultra-Fast Response (down to 35 ms) For Reliable Interception Of Short-Duration Signals |
| Bearing Track & Hold Feature |
| Dual-Mode Range Tone |
| Selectable 6/15/30/200 kHz IF Bandwidths |
| Reads DF Antenna Model/Band Data From DF Antenna Personality Modules |
| GPS Receiver & Digital Compass Inputs |
| Real-Time RS-232 Remote Control Capability With Windows Software Thru Single Com Port |
| Comprises DFP-1000B DF Processor & AR5001D Surveillance-Quality Receiver |
| Can Also Be Used With External Host Receivers |
Download DFR-5001B Product
Data Sheet (A01-74k)
